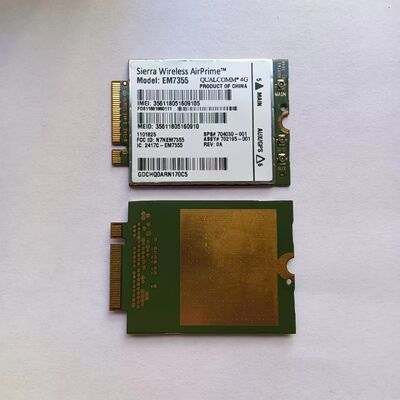

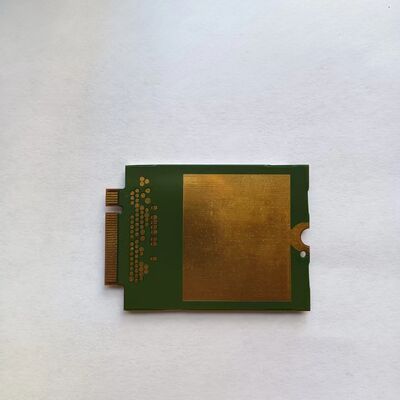

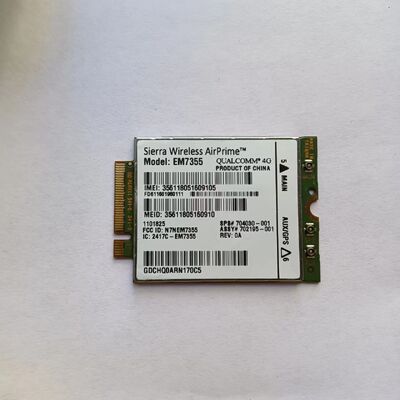

Up To 1.9 Gbps Data Transfer Rate EM7355 Module Supporting Guest Network Optimized For Corporate Wireless Infrastructure

  • Up To 1.9 Gbps Data Transfer Rate EM7355 Module Supporting Guest Network Optimized For Corporate Wireless Infrastructure
  • Up To 1.9 Gbps Data Transfer Rate EM7355 Module Supporting Guest Network Optimized For Corporate Wireless Infrastructure
  • Up To 1.9 Gbps Data Transfer Rate EM7355 Module Supporting Guest Network Optimized For Corporate Wireless Infrastructure
Place of Origin China
Μάρκα Sierra Wireless
Model Number EM7355
Ποσότητα παραγγελίας min 100
Τιμή $12.00 - $20.00/pieces
Συσκευασία λεπτομέρειες - Τέλεια.
Χρόνος παράδοσης 2-5 εργάσιμες
Όροι πληρωμής L/C, T/T
Δυνατότητα προσφοράς 10000 κομμάτια/κομμάτια ανά ημέρα
Λεπτομέρειες
Κατηγορία ζώνης συχνότητας ΔΙΠΛΗ ΖΩΝΗ Μέγεθος αποθήκευσης 128 ΜΒ
Ρυθμός μεταφοράς δεδομένων Μέχρι 1,9 Gbps Χρήση νοικοκυριά
Τεχνολογία συνδεσιμότητας Ασύρματος Δίκτυο φιλοξενουμένων Ναί
βάρος Δεν διευκρινίζεται Αριθμός κεραιών 3
Αφήστε ένα μήνυμα
Περιγραφή προϊόντων

EM7355 Datasheet


EM7355 is a 4G LTE Cat.3 M.2 wireless communication module from the AirPrime series by Sierra Wireless . It is mainly used in laptops, industrial PCs, tablets and other devices to provide global multi-mode cellular network access and GNSS positioning.


I. Core Specifications


  • Manufacturer: Sierra Wireless
  • Chipset Platform: Qualcomm MDM9615
  • Package: M.2 3042 (52-pin)
  • Dimensions: 42 × 30 × 2.3 mm
  • Network Standards:
    • LTE FDD Cat.3: Downlink 100 Mbps, Uplink 50 Mbps
    • Supports DC‑HSPA+ / HSPA+ / WCDMA, CDMA 1x/EVDO Rev.A, GSM/EDGE
    • GNSS: GPS + GLONASS (passive antenna supported)

  • Main Frequency Bands (North American Version):
    • LTE: B2/B4/B5/B13/B17/B25
    • UMTS: B1/B8/B26
    • GSM/EDGE: 850/900/1800/1900 MHz
    • CDMA: 800/1900 MHz

  • Interface: USB 2.0
  • Operating Temperature: -25°C ~ +60°C
  • Certifications: FCC, IC, PTCRB, AT&T / Verizon / Sprint / T‑Mobile carrier certifications
  • System Support: Windows 7/8, Linux


II. Typical Applications


  • Built-in 4G for laptops and ultrabooks
  • Industrial tablets, rugged notebooks (e.g. Panasonic Toughbook)
  • Automotive, medical and financial terminals
  • IoT gateways and industrial routers


III. Features


  • Multi-mode full network compatibility: Covers mainstream North American 4G/3G/2G bands
  • High integration: Built-in RF, baseband, power management and GNSS for simplified design
  • Complete certifications: Directly usable in end products, reducing certification costs
  • Industrial temperature range: Adaptable to harsh environments


IV. Usage Notes in Mainland China


EM7355 is a North America-customized version and does not support Chinese LTE bands B1/B3/B8. 4G service is basically unavailable in mainland China; only partial 2G/3G (China Unicom) may be accessible in some areas. For domestic 4G use, models supporting B1/B3/B8 such as EM7345, EM7455, FM350 are recommended.
